Preparative Columns (10 mm ID & above)
Preparative Columns for HPLC
Inner Diameter Range: 10 – 300 mm
YMC offers HPLC columns in a variety of sizes and hardware types to fill a wide range of chromatographic needs. Our standard preparative hardware range includes columns and guards with an inner diameter of 10 – 50 mm for most phases, with some available in 70 – 300 mm ID.
YMC-Actus SP spring-assisted axial compression columns as well as YMC glass columns provide additional sizes and hardware configurations. With our optional packing services, these products can also be delivered ready for use.
As always, if you have a specific need that you don’t see on our website, please contact our customer service team or your local YMC rep. Special order or custom options may be available.
Hardware Specifications
Below is an overview of the different types of prepacked preparative hardware that we offer.
Please note: not all combinations of ID and length are available and some hardware types are only available for certain products in specific particle sizes. See column selection pages or contact us for assistance.

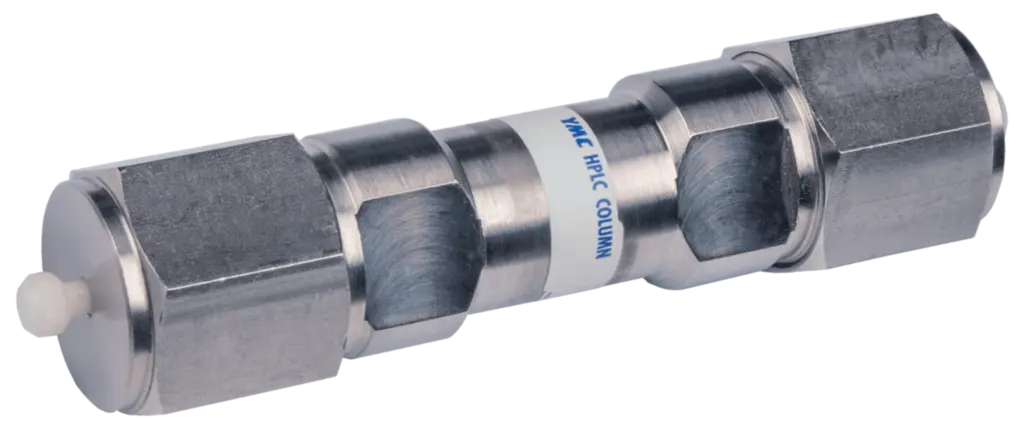

| 10 – 30 mm ID Columns | ||
|---|---|---|
| Hardware Type | Column | Guard Column |
| Part # Ending | WT | WTG |
| Available IDs | 10, 20, 30 mm | |
| Available Lengths | 30, 50, 75, 100, 150, 250, 300 mm | 30 mm |
| Max Pressure | 100 bar | |
| Port Depth | 3.3 mm (0.13″), 1/16″ | |
| 50 – 200 mm ID Columns | ||
|---|---|---|
| Hardware Type | Flanged Column | Flanged Guard Column |
| Part # Ending | AR/DR | ARG/DRG |
| Available IDs | 50, 70, 100, 150, 200 mm | 50 mm |
| Available Lengths | 50, 100, 250, 300, 500, 1000 mm | 50 mm |
| Max Pressure | 1AR(G) / 1DR(G) – 70 bar | |
| 2AR(G) / 2DR(G) – 140 bar | ||
| Port Depth | AR(G) – 1/16″ male nut | |
| DR(G) – 1/8″ female nut | ||

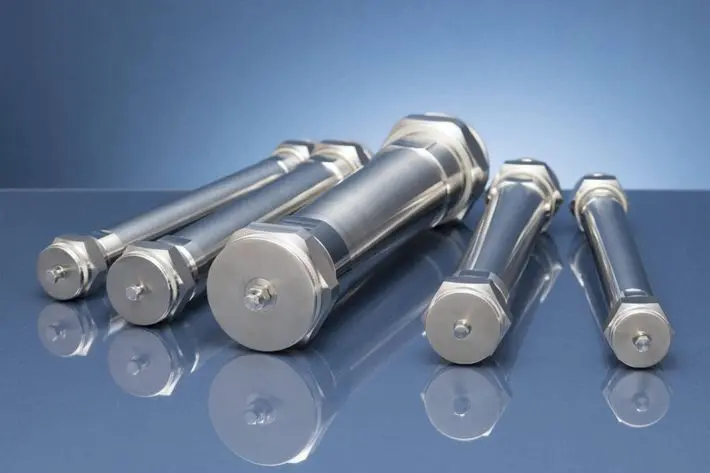

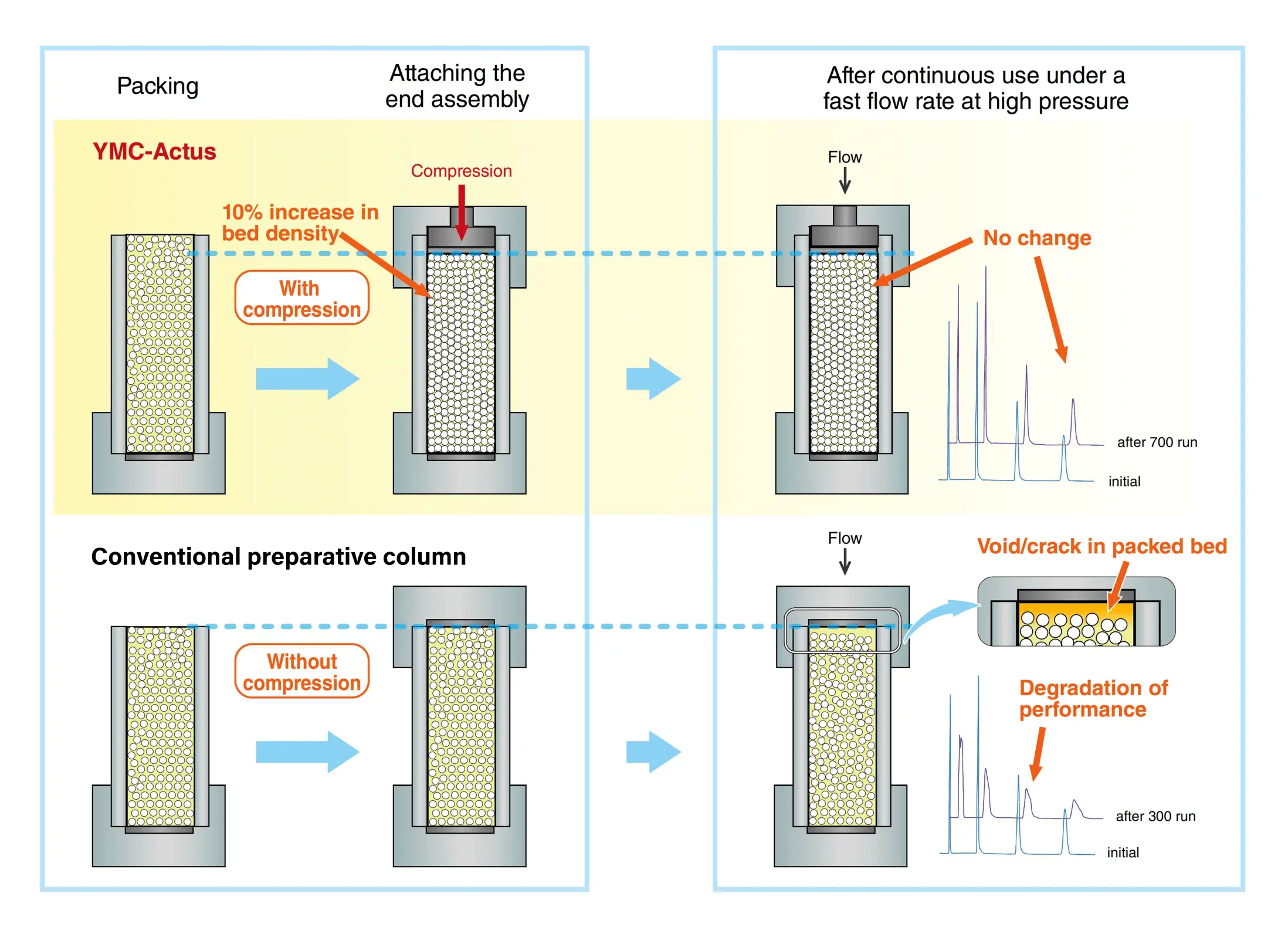

YMC-Actus preparative columns were developed by applying the same technology used in Dynamic Axial Compression (DAC) columns. The column bed is compressed when attaching the inlet end assembly of the YMC-Actus hardware. This provides increased bed density (10% higher than that of conventional columns) and bed uniformity. Packed with YMC resins, Actus columns have been shown to maintain high stability under high flow rates and steep gradient conditions.

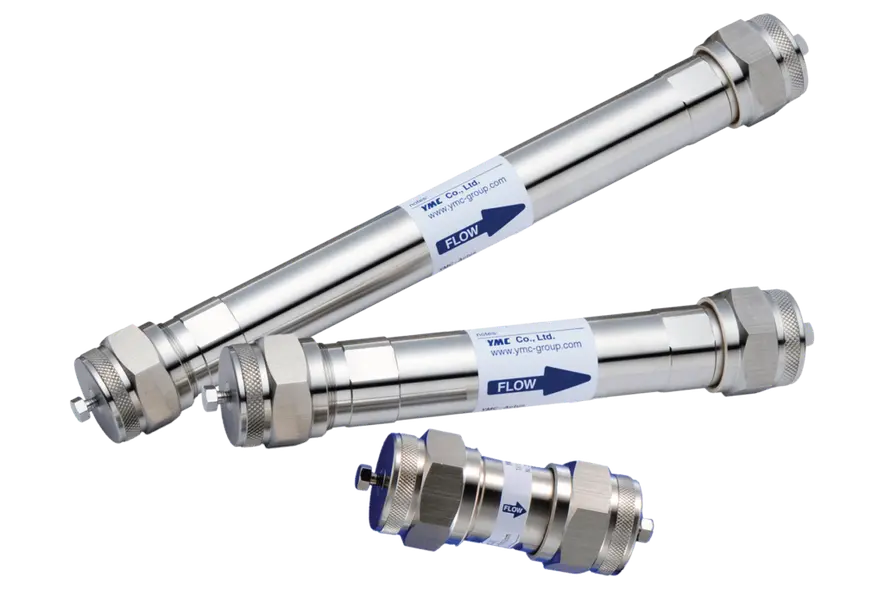

| Hardware Type | YMC-Actus Prep Column | ||
|---|---|---|---|
| Part # Ending | WX | DX | AX |
| Available IDs | 20, 30 mm | 50 mm | |
| Available Lengths | 50, 75, 100, 150, 250 mm | 50, 100, 150, 250 mm | |
| Max Pressure | 300 bar (for 5μm) | 200 bar (for 5μm) | |
| Connection | Female Swagelok nut connection (1/8”) | ||
| Fitting | 1/8″ | 1/16″ | |
Can be used with both WT and WX style columns
Part # Ending: CC(N)
Standard IDs: 10, 20, 30 mm
Standard Lengths: 10 mm
Max Pressure: 300 bar
Port Depth: 3.3 mm (0.13”), 1/6”
Holder Part #: XPCHSPW1 (10 mm ID guards)
XPGHFSP20ID (20 mm ID guards)
XPGHFSP30ID (30 mm ID guards)
(Note: holders are sold separately)

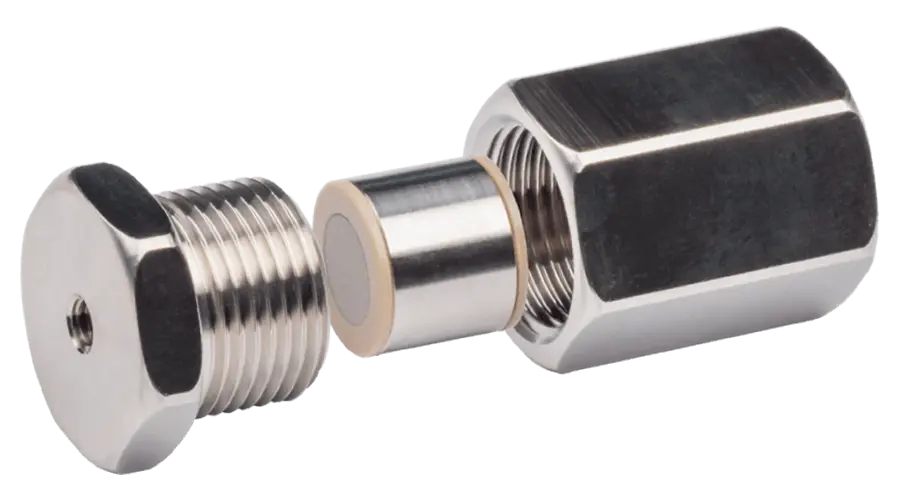

10 mm ID Guard Cartridge (CC) and Holder (XPCHSPW1)

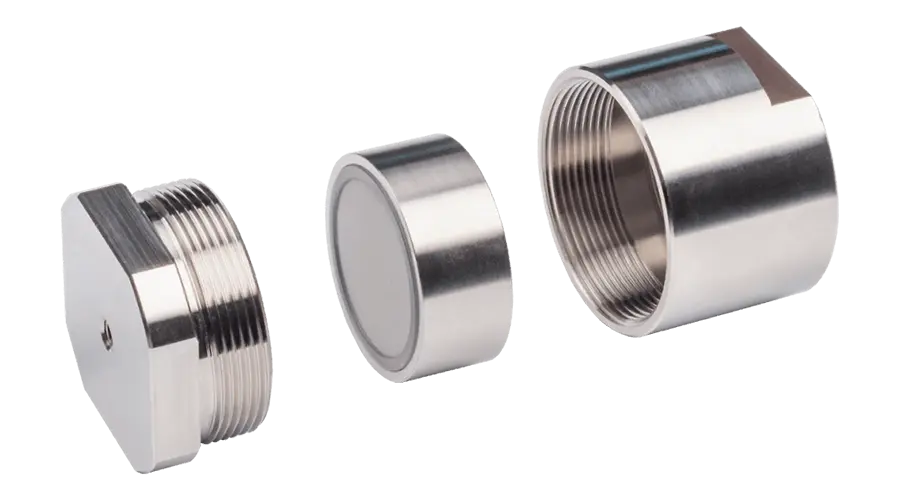

20 / 30 mm ID Guard Cartridge (CCN) and Holder (XPGHFSP20ID / XPGHFSP30ID)
Product Availability
Preparative column dimensions are generally available for resins with 5 μm (and higher where applicable) particle sizes. View the individual product pages to find more in-depth information or place an order. Not all combinations of particle/pore size, ID/length/hardware type are available, but special order configurations may be possible. If you don’t see the specifications you need, please contact us for assistance.
| Product | Columns | Guards | ||||
|---|---|---|---|---|---|---|
| WT (Original Hardware) |
WX (Actus Hardware) |
DX/AX (Actus Hardware) |
DR/AR (Original Hardware) |
CC(N) | WTG | |
| 10 – 30 mm ID | 20 – 30 mm ID | 50 mm ID | 50 – 200 mm ID | 10 – 30 mm ID | ||
| YMC-Triart Series | 10 mm ID | X | X | X | X | |
| CHIRAL ART | 10 mm ID | X | X | X | X | |
| J’Sphere ODS Series | X | X | X | X | ||
| YMCbasic | X | X | X | X | X | X |
| YMC-Pack C4(-HG) | X | X | X | X | ||
| YMC-Pack C8(-HG) | X | X | X | X | ||
| YMC-Pack CN(-HG) | X | X | X | X | ||
| YMC-Pack Diol(-HG) | X | X | X | |||
| YMC-Pack Diol-NP(-HG) | X | X | X | X | ||
| YMC-Pack NH2 | X | X | X | |||
| YMC-Pack ODS-A(-HG) | 10 mm ID | X | X | X | X | X |
| YMC-Pack ODS-AL | X | X | X | X | X | X |
| YMC-Pack ODS-AM | X | X | X | X | X | X |
| YMC-Pack ODS-AQ(-HG) | 10 mm ID | X | X | X | X | X |
| YMC-Pack Ph(-HG) | X | X | X | X | ||
| YMC-Pack Polyamine II | X | X | X | |||
| YMC-Pack PVA-SIL | X | X | X | X | ||
| YMC-Pack SIL(-HG) | X | X | X | X | ||
| YMC-Pack TMS(-HG) | X | X | X | X | ||
| YMC-Pack Pro Series | 10 mm ID | X | X | X | X | |
